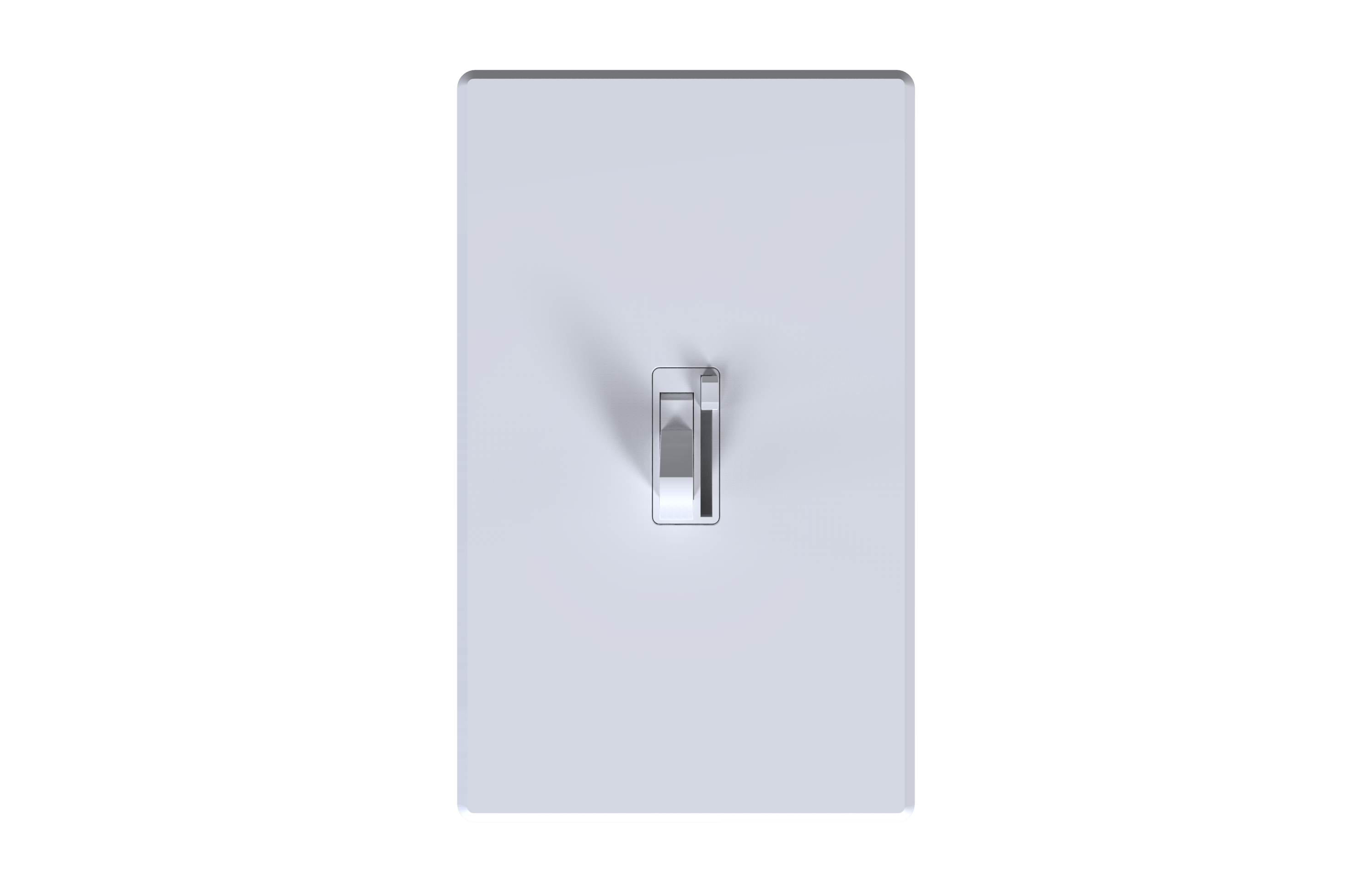

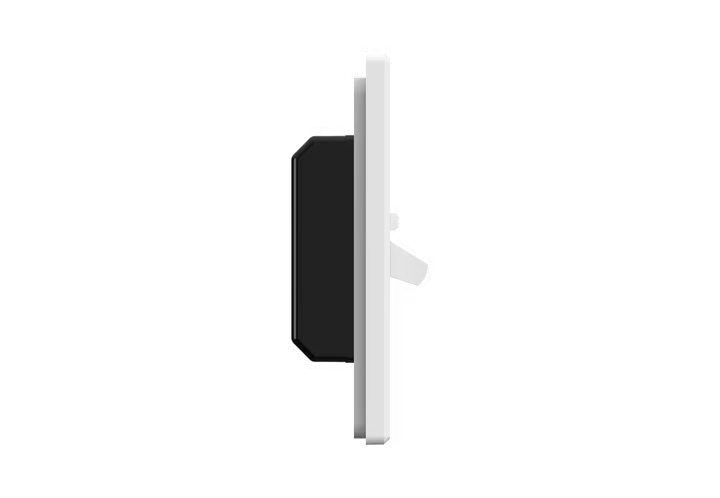

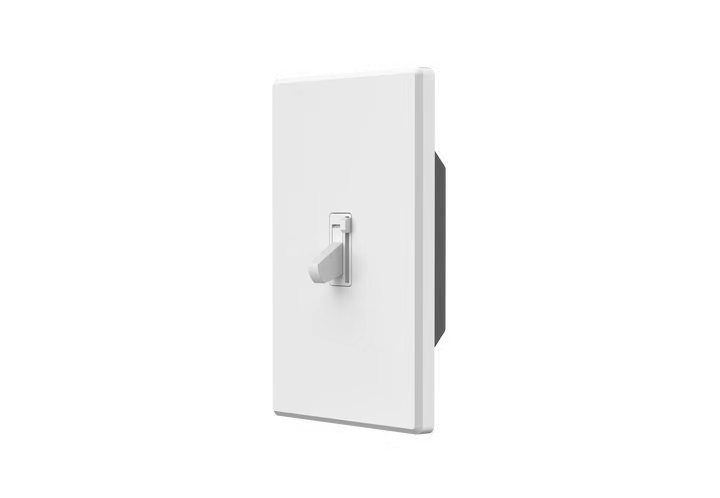

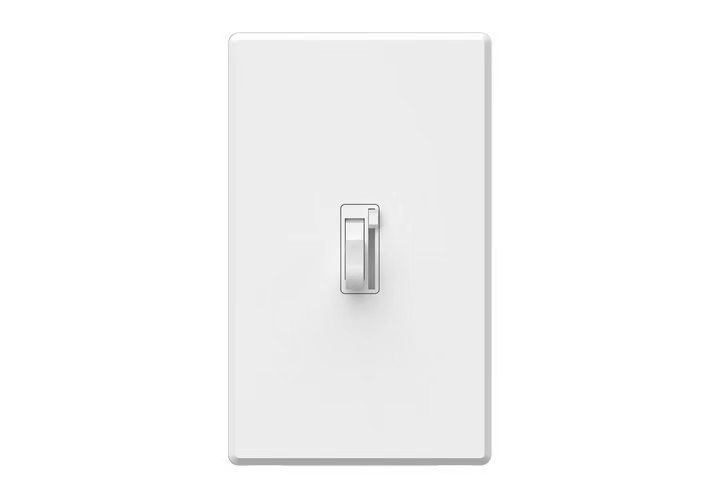

Dimmer switch

GS-S2-B1011

Product description: ETL Certified 120V Leading‑Edge TRIAC Dimmer, single‑pole & 3‑Way compatible. Flicker‑free for LED, CFL & incandescent. 3‑year warranty, factory wholesale for North America. Request your quote today.
INQUIRY

This product is an AC120V phase-controlled dimmer. It adopts cutting-edge phase-splitting technology and is compatible with LED, CFL, and incandescent loads, achieving smooth and flicker-free dimming. It is suitable for home lighting, hotel rooms, commercial exhibition halls, and office spaces in regions such as North America and Canada.

Input voltage：120VAC

Incoming frequency：50/60Hz (Adaptive)

Output voltage: Same as input voltage (phase-cutmodulation)

Outgoing channel: Single-Pole/3-Way

Maximum output current：≤5A (typical value)

Maximumoutput：300W@120VAC（LED 、CFL）600W@120VAC（INCAND）

Minimum load power:≥3W
