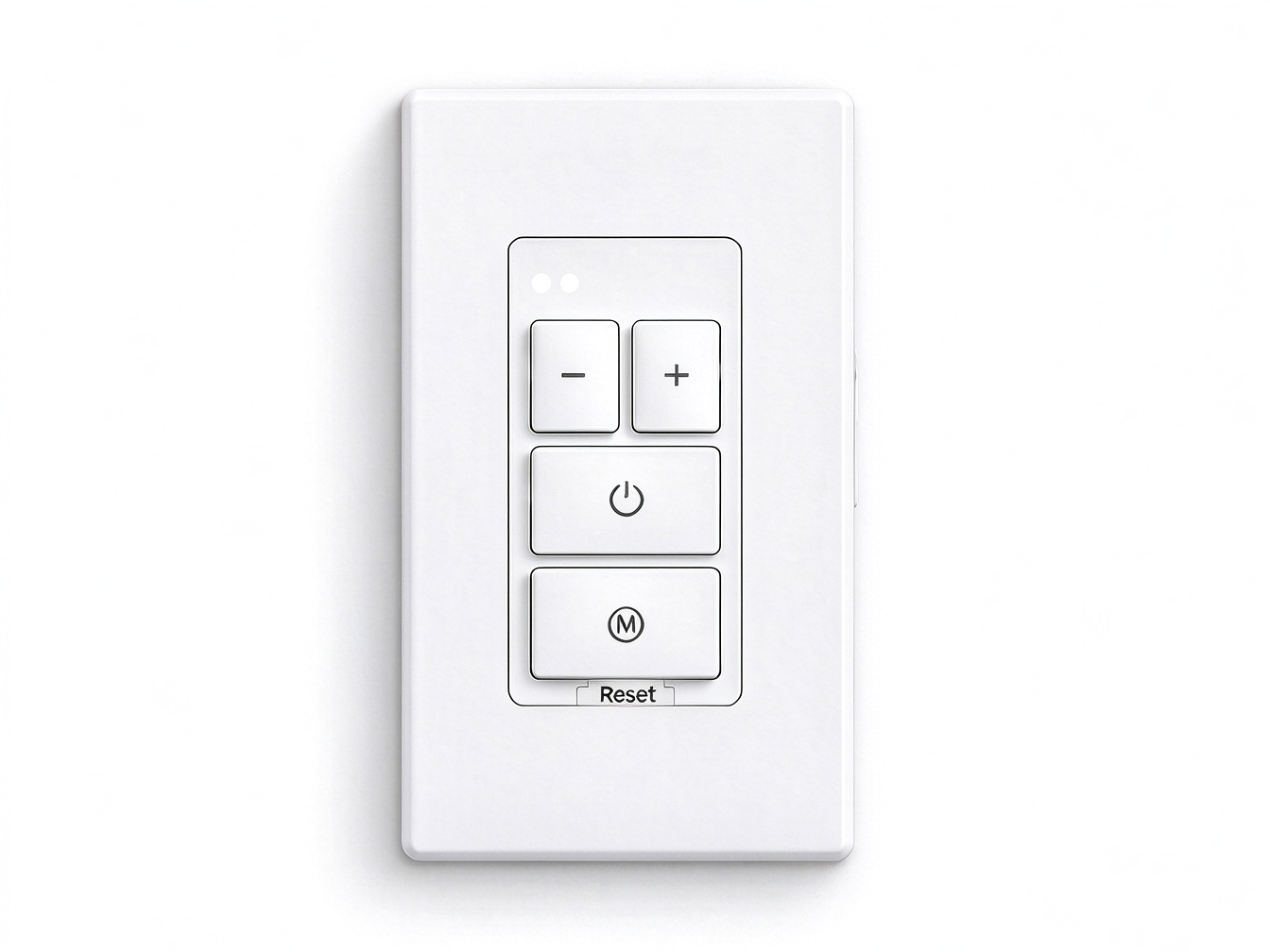

Dimmer switch

GS-SCR-DZ

Product description: 8-level brightness dimmer switch with memory function. Adjust light from 10% to 100% by +/- buttons. Long press M to save brightness settings, short press M to recall. Single-line control, no neutral
INQUIRY

Operating voltage: 120 V AC

LED / CFL load: 300 W

Incandescent load：600 W

Control type: Push button

Memory recall: M button

Mounting: Wall mount

Housing： Thermoplastic

Contact material: Copper

Flame rating: UL94 V-0

Protection rating: IP40

Wall plate: Included

This product is an AC120V phase-controlled dimmer. It uses cutting-edge phase-splitting technology and is compatible with LED, CFL, and incandescent loads, delivering smooth, flicker-free dimming. It is suitable for home lighting, hotel rooms, commercial exhibition halls, office spaces, and other scenarios in North America and Canada.
