Dimmer switch

GS-S2-Z1011

Product description: Designed for North American 120 V lighting, this leading-edge TRIAC dimmer provides smooth brightness adjustment for compatible dimmable LED, CFL, and incandescent lamps.
INQUIRY

Input voltage:120VAC
Incoming frequency:50/60Hz (Adaptive)
Output voltage: Same as input voltage (phase-cutmodulation)

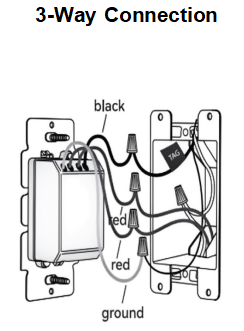

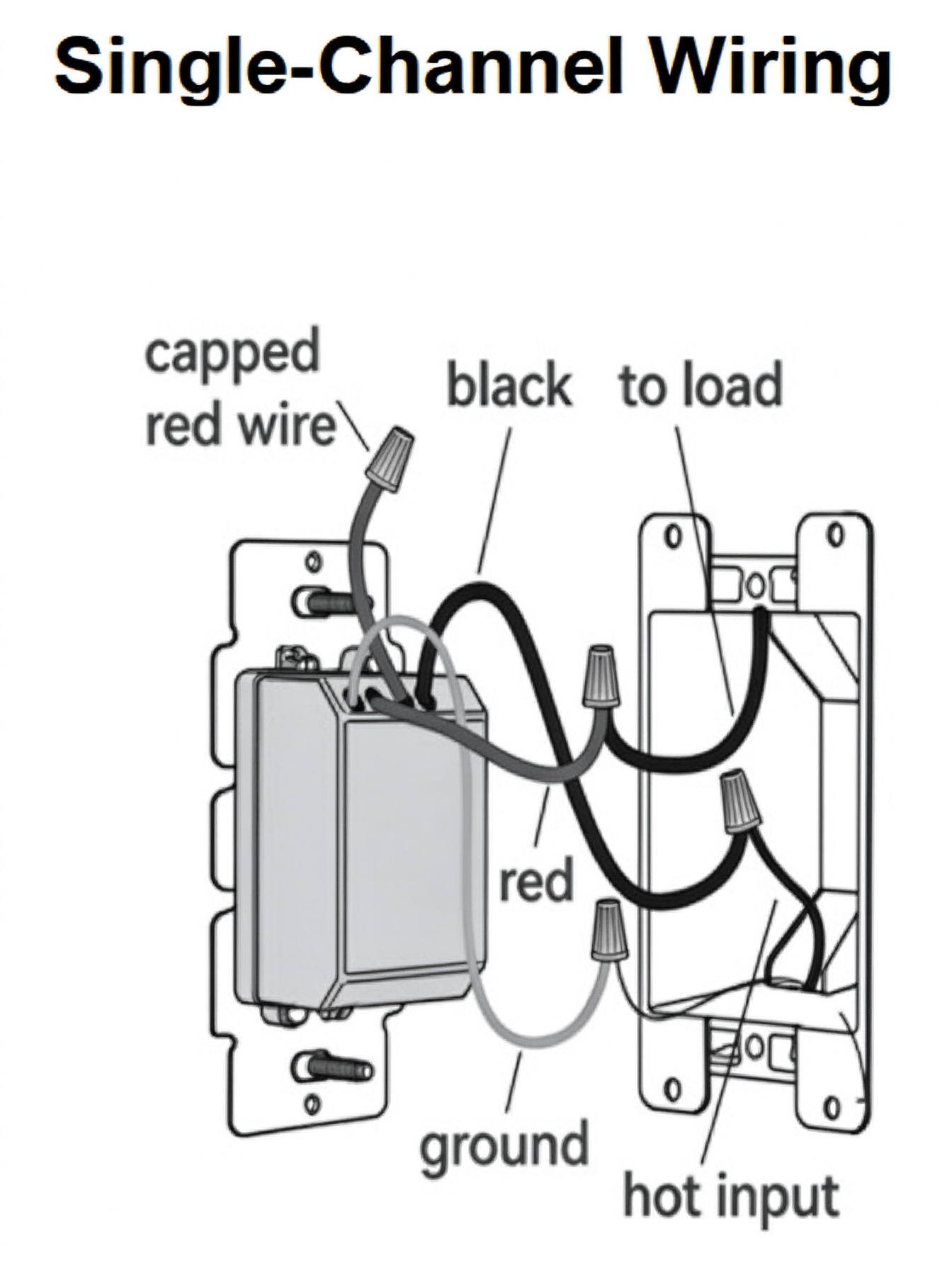

Outgoing channel: Single-Pole/3-Way
Maximum output current:≤5A (typical value)
Maximumoutput:300W@120VAC（LED 、CFL）600W@120VAC（INCAND）

Minimum load power:≥3W

This product is an AC120V phase-controlled dimmer. It adopts cutting-edge phase-splitting technology and is compatible with LED, CFL, and incandescent loads, achieving smooth and flicker-free dimming. It is suitable for home lighting, hotel rooms, commercial exhibition halls, office spaces, and other scenarios in North America and Canada.
