Dimmer switch

GS-ZS4-D1011

Triac

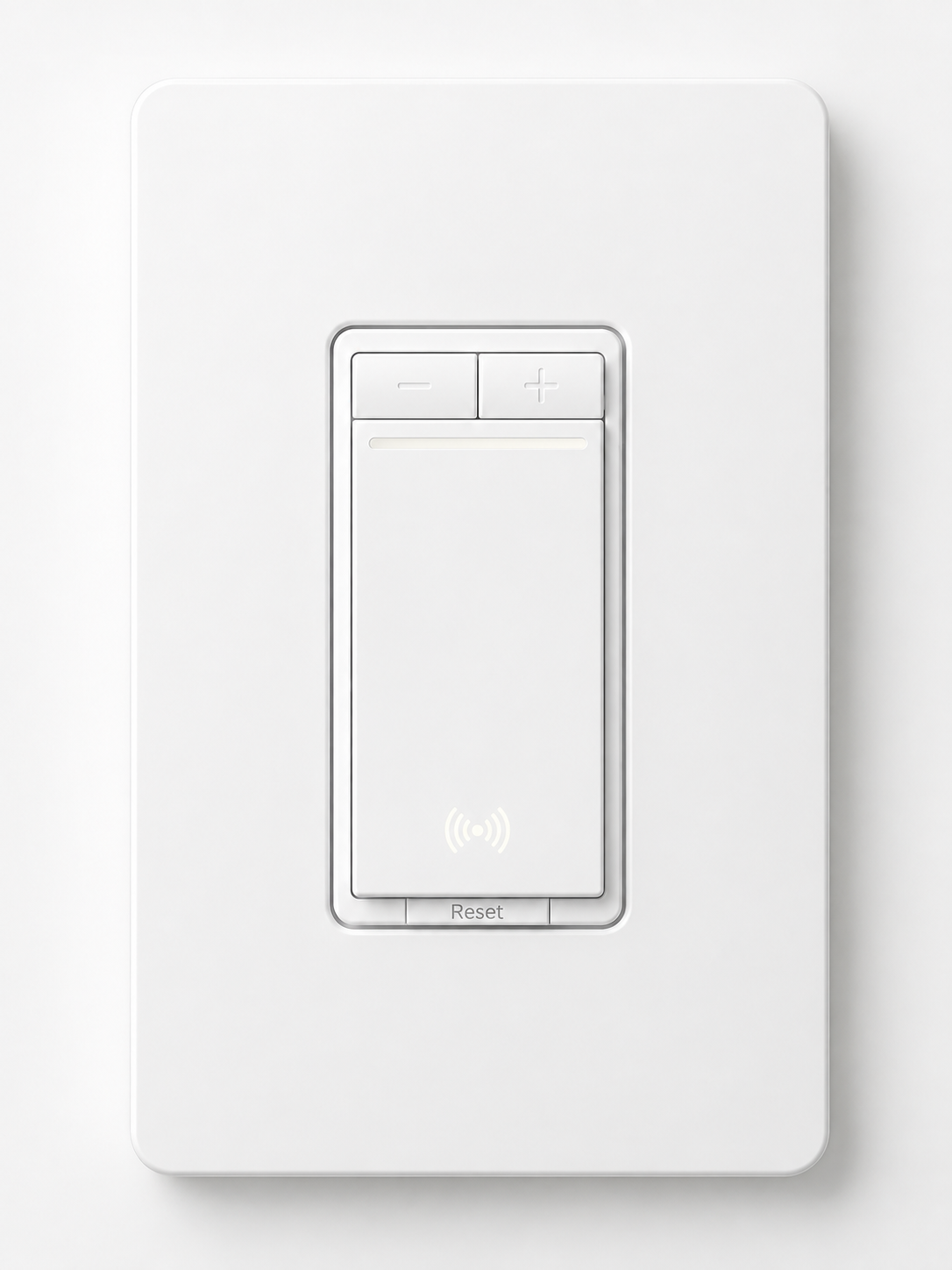

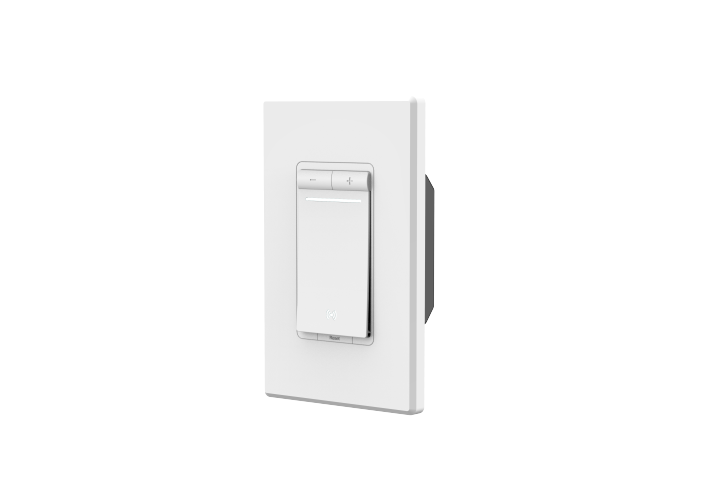

Product description: This WiFi smart dimmer features physical +/- buttons for 8-level dimming, remote brightness control via the Tuya APP, and smooth, flicker-free dimming output.
INQUIRY

The controller is an electronic forward-phase dimmer with a triac, AC120V 50/60Hz, IP20, ETL-certified. It can phase-cut dimmable LED drivers, fluorescent lamps, and incandescent lamps to adjust the brightness of the load. The controller supports a maximum LED load of 150W and a maximum load of 450W for fluorescent and incandescent lamps. It uses an L and N dual-wire power supply, is compatible with S-P and 3-Way control, works with the Tuya Smart Life app (custom UI), and also supports Alexa and Google Voice control.

Product Name: WiFi Smart Dimmer

Model No.: GS-ZS4-D1011

Input Voltage: 120 VAC, 50/60 Hz

Output Voltage: Same as input voltage (phase-cut dimming)

Control Method: TRIAC Phase-Cut Control

Output Channel: Single-pole / 3-Way

Load Rating: 300 W @ 120 VAC (LED, CFL), 600 W @ 120 VAC (INCAND)

WiFi Standard: IEEE 802.11 b/g/n (2.4 GHz)

App Compatibility: Tuya Smart (iOS / Android)

Operating Temperature: -20℃ ~ +40℃

IP Rating: IP20 (indoor use)

Flame Rating: UL94-V0
